Lab 5: Moran’s I & LISA

Welcome to Lab 5 Week 1 !

Aims

Today’s lab explores autocorrelation and Moran’s I, covering scatterplots hypothesis tests, and next week, Local Moran’s I, LISA. In addition, you will build on last week’s datacamp to use tidycensus data.

THIS IS A TWO WEEK LAB.
You have two full lab sessions, then, Lab 5 is due the week afterwards.
The lab is worth 110 points and there is a rubric at the end of this page.

A. Set-up

Seriously, please don’t skip this. It’s the biggest cause of lab issues.

A1. Create a Lab 5 project

First, you need to set up your project folder for lab 5, and install packages if you are on the cloud.

POSIT CLOUD people, click here to install packages..

Step i:
Go to https://posit.cloud/content/ and make a new project for Lab 5

Step ii:
Run this code IN THE CONSOLE to install the packages you need.

This is going to take 5-10 minutes, so let it run and carry on.

# COPY/PASTE THIS IN THE CONSOLE QUADRANT,
# DON'T PUT IT IN A CODE CHUNK

install.packages("readxl")
install.packages("tidyverse")
install.packages("ggplot2")
install.packages("ggstatsplot")
install.packages("plotly")
install.packages("dplyr")
install.packages("skimr")
install.packages("rmdformats")

install.packages("remotes")
remotes::install_github(repo = "r-spatial/sf",
                        ref = "93a25fd8e2f5c6af7c080f92141cb2b765a04a84")

install.packages("terra")
install.packages("tidycensus")
install.packages("tigris")
install.packages("tmap")
install.packages("units")
install.packages("spdep")
install.packages("sfdep")

# If you get a weird error it might be that the quote marks have messed up.
# Replace all of them and ask Dr G for a shortcut.

Step iii:
Go to the Lab Canvas page and download the data AND the lab report. Upload each one into your project folder.
Forgotten how? See Lab 2 Set-Up.

R-DESKTOP people, click here to create your lab project.

A2. Add your data & lab template

Go to Canvas and download the lab template and datasets for this week’s lab. Should be one dataset and one lab template. Immediately put it in your lab 5 folder (or upload it if you’re on the cloud. Rename the lab template to something with your email ID, then open it.

A3. Change the YAML Code

The YAML code sets up your final report. Changing the theme also helps us to not go insane when we’re reading 60 reports. Expand for what you need to do.

Step A3 Instructions

Step i: Change the AUTHOR line to your personal E-mail ID

Step ii: Go here and choose a theme out of downcute, robobook, material, readthedown or html_clean: https://github.com/juba/rmdformats?tab=readme-ov-file#formats-gallery.
DO NOT CHOOSE html_docco - it doesn’t have a table of contents

Step iii:
Change the theme line on the template YAML code to a theme of your choice. See the example YAML code below
Note, downcute chaos is different - see below

Example YAML code if you want robobook, material, readthedown or html_clean. You can also change the highlight option to change how code chunks look. - see the rmdformats website.

---
title: "Lab 5"
author: "ADD YOUR EMAIL ID"
date: "`r Sys.Date()`"
output:
  rmdformats::robobook:
    self_contained: true
    highlight: kate
---

Example YAML code if you want downcute or downcute chaos. For white standard downcute, remove the downcute_theme line..

---
title: "Lab 5"
author: "ADD YOUR EMAIL ID"
date: "`r Sys.Date()`"
output:
  rmdformats::downcute:
    self_contained: true
    downcute_theme: "chaos"
    default_style: "dark"
---

A4. Add the library code chunk

DO NOT SKIP THIS STEP (or any of them!). Now you need to create the space to run your libraries. Expand for what you need to do.

Step A4 Instructions

Step i: At the top of your lab report, add a new code chunk and add the code below.

Step ii: Change the code chunk options at the top to read
{r, include=FALSE, warning=FALSE, message=FALSE} and try to run the code chunk a few times

Step iii: If it works, all ‘friendly text’ should go away. If not, look for the little yellow bar at the top asking you to install anything missing, or read the error and go to the install ‘app-store’ to get any packages you need.

# IF spdep causes issues, remove and run again. sfdep SHOULD be able to do everything spdep does, it's just pretty new.

  rm(list=ls())
  library(plotly)
  library(raster)
  library(readxl)
  library(sf)
  library(skimr)
  library(spdep)
  library(sfdep)
  library(tidyverse)
  library(tidycensus)
  library(terra)
  library(tmap)
  library(dplyr)
  library(tigris)
  library(tmap)
  library(units)
  library(viridis)
  library(ggstatsplot)

  options(tigris_use_cache = TRUE)

STOP AND CHECK

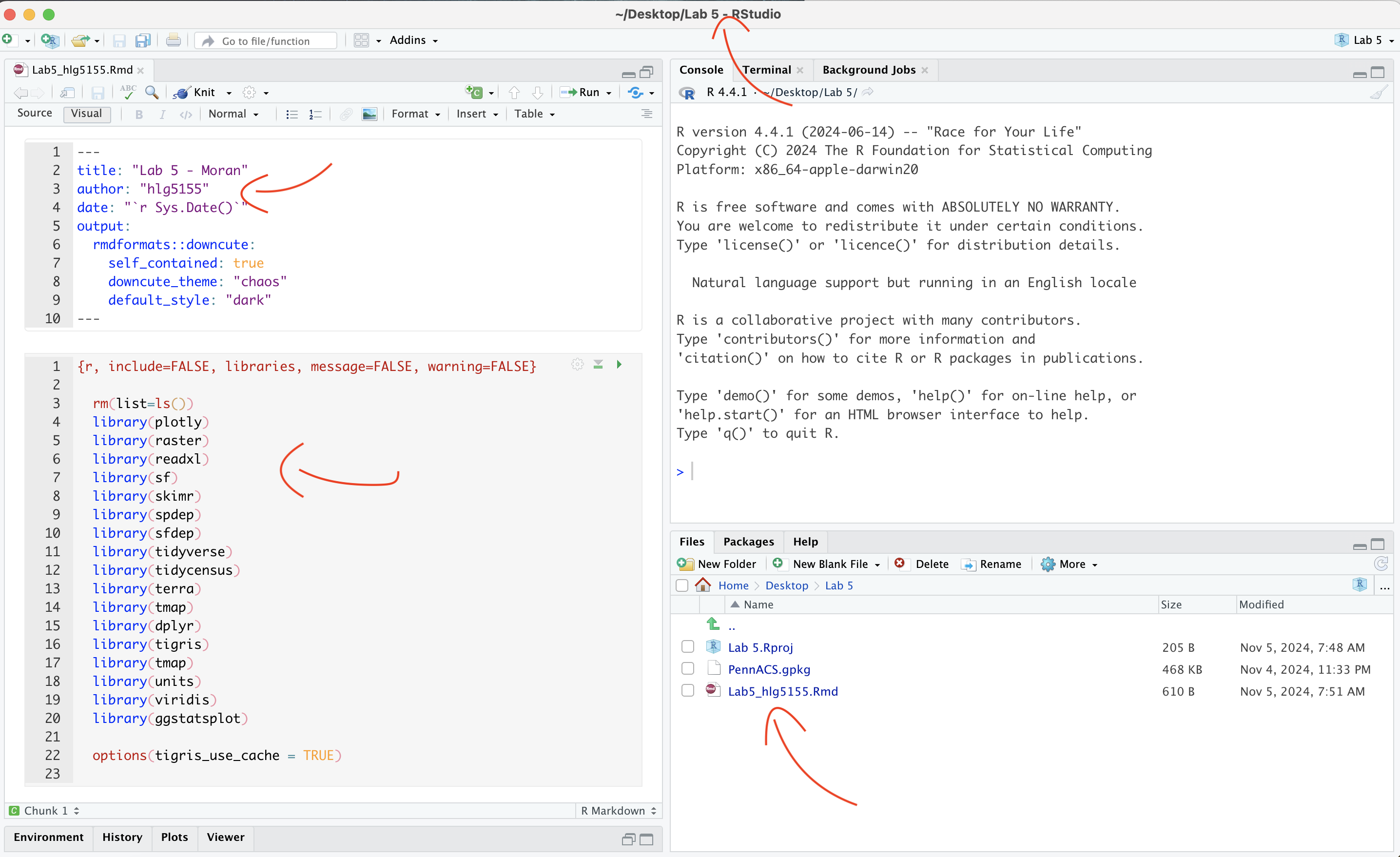

STOP! Your screen should look similar to the screenshot below (although your lab 5 folder would be inside GEOG364).If not, go back and redo the set-up!

B: Moran’s theory showcase

You are first going to practice Moran’s I hypothesis tests in R - with questions that link to lectures in Week 10 and 11 (this week and last), and the two recent discussions on Canvas. You need to answer these in your section “B. Moran’s showcase”.

You will get style marks for making your answers easy to find (sub-headings!), clear and understandable. You lose marks for saying incorrect things or providing vague examples.

Question B1.

[100 words min] In your own words, define spatial autocorrelation, distinguishing between positive, zero and negative spatial autocorrelation. Describe how each type of autocorrelation is represented in the Moran’s I metric, and provide a real-world example for each case to illustrate these concepts (either text or including a picture/photo you describe).

Question B2.

[50 words min] Explain why traditional statistical tests become challenging when working with data that exhibits spatial autocorrelation. <br> (hint, think about the assumptions we normally make when taking a sample).

Question B3.

“H₀: Any”pattern” we see is spurious - the data shows Complete Spatial Randomness and is created by an Independent Random Process.”

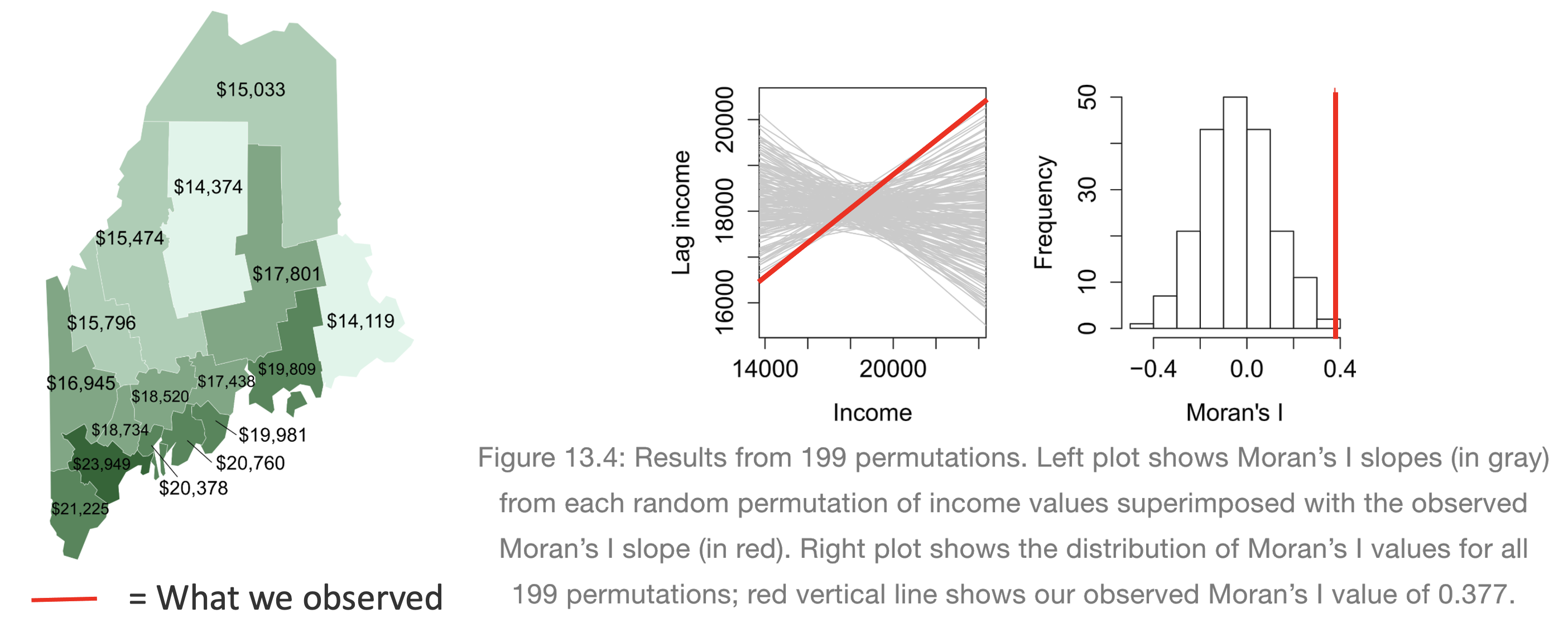

This week we discussed how a hypothesis test, H₀, represents a specific scenario we want to test, and that the p-value gives us the probability of observing some aspect of our data if that scenario were true. We also covered that the simplest baseline scenario to check is whether any observed pattern could be due to an Independent Random Process.

[50 words min] Explain what Independent Random Process is, and how it links with Complete Spatial Randomness and spatial autocorrelation.

Question B4.

[50 words min] Explain what a Monte Carlo ^[1] process is, and how we use them to conduct a Moran’s hypothesis test. E.g. explain the figure below.
[1] Also known as bootstrapping or an ensemble process.
(Hint, lecture 11A and https://mgimond.github.io/Spatial/spatial-autocorrelation-in-r.html#app8_5 )

_{[1] Otherwise known as bootstrapping, ensembles or “repeating a process over and over..”}

REAL EXAMPLE (REST OF LAB)

C. Wrangling Census data

The way the rest of this lab is structured is that we going to work through an example of analyzing census data using R and testing it for autocorrelation. In this section we get all the columns we need, do some quality control and get everything neat and ready.

C1. Get the data

Your data comes from the American Community Survey, a big government dataset that is used alongside the the US Census. We will be looking at county level demographic data for Pennsylvania.

Normally, I would get you to directly download your data using using tidycensus, but the website that provides accreditation is not working. So, I created it for you and you can simply read in the file..

If you haven’t already downloaded the data, GO BACK AND DO THE SET UP!
Now read the data into R using the st_read command and save it as a variable called AllData e.g. AllData <- st_read("PennACS.gpkg")

How Dr G got the census data

I download the data directly from the American Community Survey using tidycensus. You do not have to do this, but just in case, you might need it in real life, here is my code and a tutorial.

Expand for a tidycensus tutorial
(you do not need this for this lab)

# This comes from the tidycensus library
PennACS.sf <- get_acs(
                survey = "acs5",
                year   = 2020,
                state  = "PA",
                geography = "county",
                geometry  = TRUE,
                output = "wide",
                variables = c(total.pop = "B05012_001",# Total population
                         med.income  = "B19013_001",# Median income
                         total.house = "B25001_001",# Total housing units
                         broadband   = "B28002_004",# Houses with internet
                         house.value = "B25075_001",# House value
                         house.age   = "B25035_001"))# House age


# Then I save your data to a file and upload it to canvas
st_write(PennACS.sf,"PennACS.gpkg")

To understand what I’m doing, here’s a full tutorial that I wrote a few years ago:

C2. Estimates vs margins of error

In the previous step, you should have read in the data.

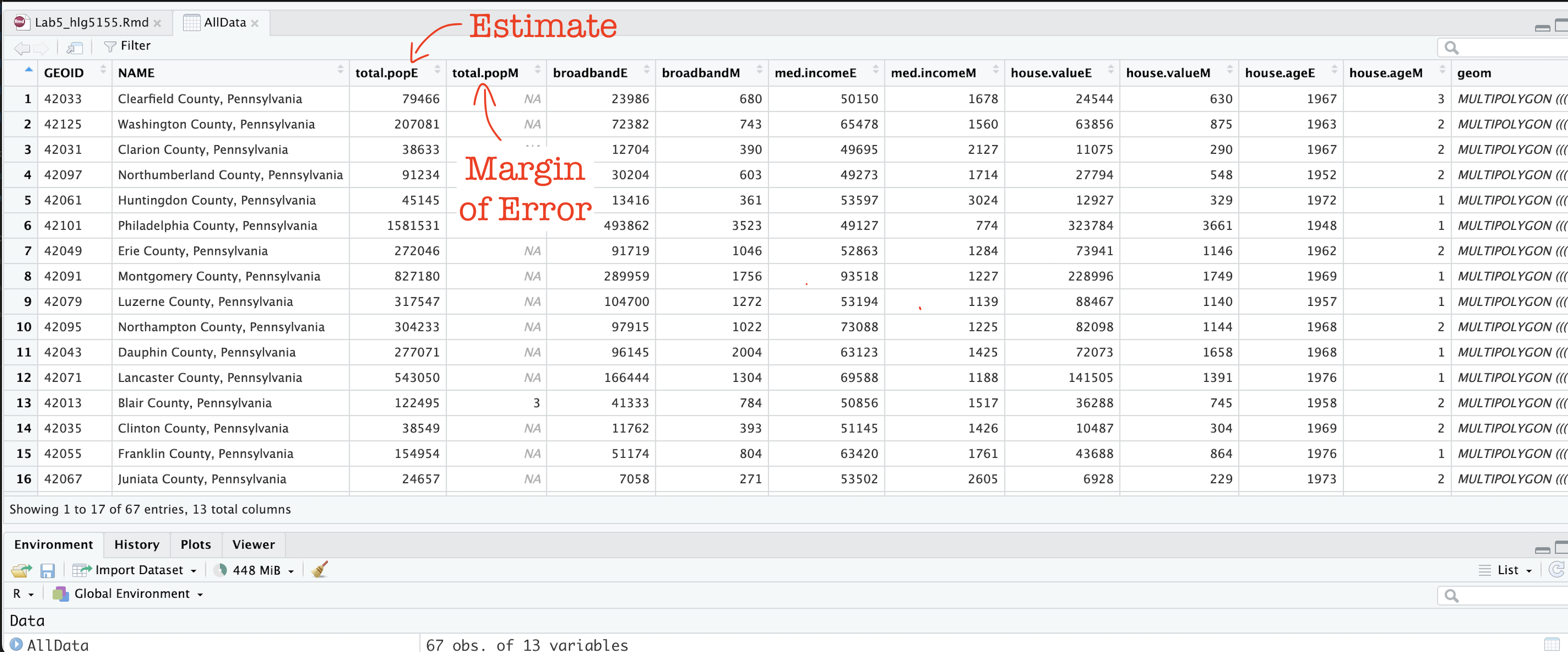

Now click on/View AllData to take a look and understand what is there.

You should now see that you have census data for Pennsylvania at a county level for these variables. In fact, for every one, it has downloaded the ESTIMATE, but also has included the MARGIN-OF-ERROR, the 90% confidence interval on our result (90% of the time our result should be within this margin of error)

The total population in each county (total.popE and total.popM)
Median income of people in each county (med.incomeE and med.incomeM)
The total number of houses in each county (total.houseE and total.houseM)
The total number of houses with broadband in each county (broadbandE and broadbandM)
Mean House Value in each county (house.valueE and house.valueM)
Mean House Age in each county (house.ageE and house.ageM)

Note a few columns are slightly different here - I rearranged them after making the screenshot

C3. Tidy the data

First, let’s remove the margin of error columns using dplyr select. They are normally very useful, but I want things as clear as possible for this lab. We can also make a working version of the data.

The code below shows how to select and rename columns. Copy it over into your lab report and check it runs. You do not need to edit anything,
- select(): Lists all the columns you want to keep, leaving out the “M” columns.
- rename(): Renames each selected column, removing the “E” suffix for each specified column.

PennACS_sf <- AllData %>%
              dplyr::select(
                GEOID, NAME, total.popE,
                med.incomeE, total.houseE, broadbandE,
                house.valueE, house.ageE, geom) %>%
              dplyr::rename(
                total.pop = total.popE,
                med.income = med.incomeE,
                total.house = total.houseE,
                broadband = broadbandE,
                house.value = house.valueE,
                house.age = house.ageE)

C4. Calculate county areas

We currently have the TOTAL number of people/houses/beds/things in each county, but it is also useful to have the percentage or rate, especially as each of our counties is a different size. First, let’s get the areas.

Copy this code over into your lab report and check it runs. You do not need to edit anything,

#Finding the area of each county
Area_M2 <- st_area(PennACS_sf)

# This is in metres^2. Convert to Km sq and add it as a new column
# and get rid of the annoying units format
PennACS_sf$Area_km2 <- set_units(Area_M2, "km^2")
PennACS_sf$Area_km2 <- round(as.numeric(PennACS_sf$Area_km2), 2)

C5. Calculate rates and densities

We currently have the TOTAL number of people/houses/beds/things in each county, but it is also useful to have the percentage or rate, especially as each of our counties is a different size.

Copy this code over into your lab report and check it runs. You do not need to edit anything, This example which will calculate the percentage of people in each county who use broadband and save as a new column called broadband_percent.

PennACS_sf <- mutate(PennACS_sf, broadband_percent = broadband/total.house)

Make a new code chunk, copy/paste this code then edit it so that you create a new column called pop.density and calculate the number of people per square km (hint, you have your new Area_km2 column..)

HINT - If mutate doesn’t make sense, see this tutorial: https://crd150.github.io/lab2.html#Creating_new_variables

C6. Check for empty polygons

Now.. one quirk of R is that it hates empty polygons.

IF YOU GET ERRORS PLOTTING, I BET THIS IS WHAT IS HAPPENING.

In the census we often get them, for example there might be a polygon around a lake that doesn’t actually have people living there. So first, let’s check for and remove any empty polygons. Get this code running in your report.

Copy the code below into your lab report and check it runs. You do not need to edit anything,

# look for and remove empty polyons.
empty_polygons <- st_is_empty(PennACS_sf)
PennACS_sf <- PennACS_sf[which(empty_polygons==FALSE), ]

D. Describe the data

D1. Describe the data in words

Now, in the report, describe the dataset. Explain what the object of analysis is, the spatial domain, the spatial representation and make a bullet point list of all the variables and their units.

D2. Make some maps

tm_shape(PennACS_sf) +
  tm_polygons(col="total.pop",
              style="pretty", legend.hist = TRUE,
              palette="Reds")   +
  tm_layout(main.title = "Population per county PA",
            main.title.size = 0.75, frame = FALSE) +
  tm_layout(legend.outside = TRUE)

Use/adjust the example code above to make chloropleth maps of these columns in PennACS_sf.
1. “med.income”,
2. “house.age”,
3. “broadband_percent” and
4. “pop.density”
If you are on posit cloud and it crashes, you only have to choose one or two maps and comment that you are on the cloud.

Plotting help and color palette codes

Your maps DO NOT have to be interactive, so leave tm_mode(“plot”).

To make your maps more interesting, see below for some common color palettes. You can also play with the style option to see different breaks (?tm_polygons) - or see here for even more options. http://zevross.com/blog/2018/10/02/creating-beautiful-demographic-maps-in-r-with-the-tidycensus-and-tmap-packages/

Common color palettes

My example uses “Reds” from colorbrewer

and from the viridis package

D3. Explain the maps.

[100 words min] Discuss the spatial autocorrelation, pattern and process you see in each map. e.g. Two sentences for each map.

D4. Comment on autocorrelation

[50 words min] From your maps, decide on a variable that exhibits the most positive autocorrelation and the variable that exhibits the most negative autocorrelation (it might still be clustered, just the furthest negative) and explain your reasoning.

E. Spatial weights

E1. Defining neighbours

This section leans heavily on the example of https://mgimond.github.io/Spatial/spatial-autocorrelation-in-r.html

In order to understand autocorrelation, we must first define what is meant by “neighboring” polygons. This can refer to contiguous polygons, nearest neighbours polygons within a certain distance band, or it could be non-spatial in nature and defined by social, political or cultural “neighbors”.

In this lab, we’ll first adopt a contiguous neighbor definition where we’ll accept any polygon touching our feature. If we required Rooks that at only polygons sharing a lengthof border then we would set queen=FALSE.

Copy/paste this code into R and run it. Nothing should happen other than queenneighbours showing up in your environment

QueenNeighbours <- poly2nb(PennACS_sf, queen=TRUE)

E1. Understanding neighbours

For each polygon in our polygon object, QueenNeighbours lists all polygons deemed to be neighbours (according to queens).

For example, this code shows all the neighbours for the first polygon in our dataset (row 1, which turns out to be Clearfield County)

PennACS_sf[1,"NAME"]

# neighbours
QueenNeighbours[[1]]

You should see that Polygon 1,Clearfield County has 8 neighbors. The numbers represent the row number in PennACS_sf. So Clearfield County is associated with these neighbours:

#
PennACS_sf[QueenNeighbours[[1]] , "NAME" ]

Here instead of printing just row 1, I’m printing the rows contained in QueenNeighbours[[1]] e.g. rows 13 14 22 25 35 55 56 61. I find that the neighbours are

13 Blair County, Pennsylvania
14 Clinton County, Pennsylvania
22 Centre County, Pennsylvania
25 Indiana County, Pennsylvania
35 Jefferson County, Pennsylvania
55 Elk County, Pennsylvania
56 Cambria County, Pennsylvania
61 Cameron County, Pennsylvania

YOUR TASK

Use the example above to write code and tell me in the report which counties are bordering Lancaster County according to Queens 1st order (HINT, it’s row 12)

E2. Mapping neighbours

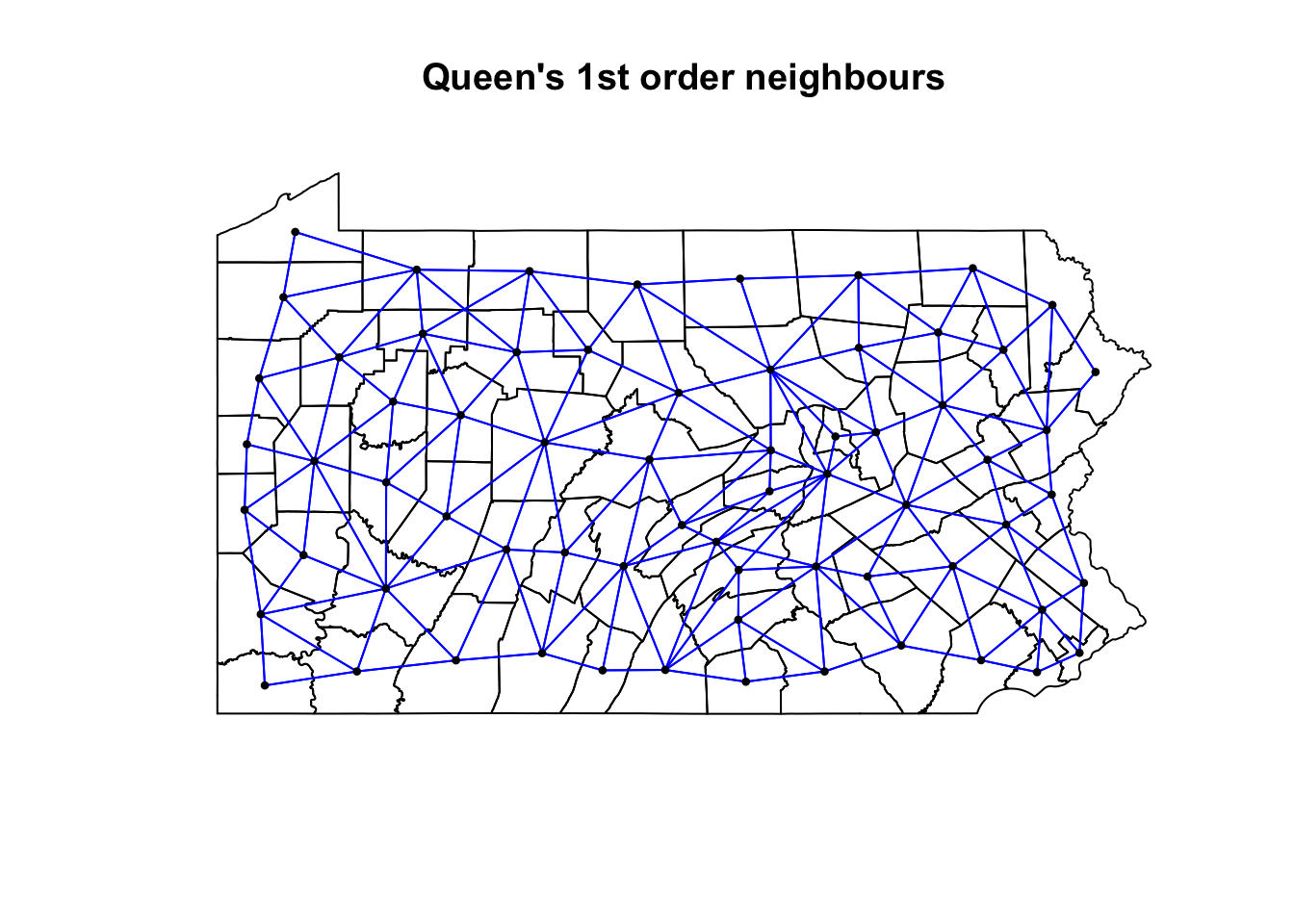

We can also see a map of the spatial weights matrix. To do this we edit the plot command

coords <- st_coordinates(st_centroid(PennACS_sf))

plot(st_geometry(PennACS_sf),main="Queen's 1st order neighbours")

plot(QueenNeighbours, coords,
     col = "blue", pch=16,cex=.6,
     add=TRUE)

YOUR TASK

[50 words min] Using the code above plot the spatial weights then explain what you see. You do not need to edit the code

E3. Spatial weights matrix

Now we need to turn these neighbours into a spatial weights matrix. We do this using the nb2listw command.

YOUR TASK

Get this running in your lab report

QueenWeights <- nb2listw(QueenNeighbours,
                         style="W", zero.policy=TRUE)

QueenWeights

The zero.policy=TRUE option allows for lists of non-neighbors. This should be used with caution since the user may not be aware of missing neighbors in their dataset. Setting zero.policy to FALSE will return an error if at least one polygon has no neighbor.

To see the normalised weight of the first polygon’s eight neighbors type:

QueenWeights$weights[1]

You should see they have an equal weight of 1/8th .For polygon 1, each neighbor is assigned an eigth of the total weight. This means that when R computes the neighboring income values, each neighbor’s income will be multiplied by 0.125 before being summed thus giving us the arithmetic mean of polygon 1’s neighbors.

YOUR TASK

Using the code above, print the spatial weights matrix for Lancaster County
From the summary of QueenWeights ( the print out when you typed its name), write in your report how many counties there are and what the average number of neighbours each county has (hint, another word for a neighbour is a link).

F. Moran’s Scatterplot

F1. Making better plot labels

The moran.plot command will label outliers, which makes much easier to interpret the output. However, I noticed writing this that the names for each county were rather long e.g. they each included the statement that they were a county in Pennsylvania.

There are a LOAD of ways to shorten this, for example using the comma to split each string, or removing words, or shortening the string. Here is the most elegant way I can think of. Normally I would put this in data wrangling but as I’ve just seen it, let’s add it here.

PennACS_sf$ShortName <- str_remove_all(PennACS_sf$NAME,
                                       " County, Pennsylvania")

Copy the code to your lab report and run it.
Below that, in a code chunk print out the summary of the PennACS_sf dataset and use that to explain SPECIFICALLY what I did. (e.g. what is the function, what does it do, what did I apply it to and how did I save my results)
HINT - summary() command
If you want a challenge, try and find an alternative way to achieve the same result e.g. shortening the NAMES column

F2. Moran scatterplot

We can now assess whether the pattern of a SPECIFIC VARIABLE shows autocorrelation or not using a Moran scatterplot. Here is the most simple moran.plot I can write, which is great for quick checks. But keep reading for a more professional looking one, which I recommend for your reports.

## and calculate the Moran's plot
moran.plot(PennACS_sf$total.pop,
           listw= QueenWeights,
           zero.policy = T)

This one looks better!

# Create the Moran's plot adding labels and axes
moran.plot(
    PennACS_sf$total.pop,
    listw = QueenWeights,
    labels = PennACS_sf$ShortName,
    xlab = "Total Population",
    ylab = "Total Population of neighbours (queens 1st order)",
    main = "",       # Leave main blank to add separately
    zero.policy = TRUE
)

# This find the value of Moran's I for my title
# I'm taking one of the printouts from the moran test
MoransI <- moran.test(PennACS_sf$total.pop,
                      listw = QueenWeights)$estimate[1]


# Add a multi-line main title with smaller font
title( main = paste("Spatial autocorrelation of Pennsylvania's total population at a county-scale\nwith neighbourhood defined using 1st order Queen's adjacency.\n\nMoran's I =", round(MoransI, 3),"   (Data from 2020 American Community Survey)"), cex.main = 0.8, font.main=1)

If you run this code chunk, you should be able to see that total population has very high positive autocorrelation (e.g. it’s very clustered as we know from the maps above). We also know that this isn’t a huge surprise as population is dominated by large cities and will be impacted by the size of individual counties. You can also see the expected outliers (Philadelphia, Allegheny (Pittsburgh).

Your tasks

It’s up to you if you want to run/keep the plot above.
But using the code above, make a nice looking Moran’s plot for the two variables you chose in Section D4. (e.g. the one you thought would be most/least clustered). If one was total.pop, choose a different one.
[100 words min]. Using your two plots, explain what a moran’s scatterplot is showing (including the meaning of the two axes), and what your two examples show - pointing out any interesting or unexpected features.

G. Moran’s Hypothesis test (week 2)

G1. Basic test interpretation

We can use a Moran’s hypothesis test to assess our theories about what is causing any clustering (see week 11 lectures).

We write our guess about the underlying process as the null hypothesis, H0. There are many H0 we could test (e.g. is the pattern similar to one caused by population density, or closer to the sea or whatever process you think is behind the pattern). But first.. it’s always important to check whether the level of clustering you see might simply be due to random chance.

To do this, we use a Moran’s test with this hypothesis:

“H₀: Any”pattern” we see is spurious - the data shows Complete Spatial Randomness and is created by an Independent Random Process.”

In terms of code, this is just as easy as the Moran.plot. Expand for a worked example for the total population variable, which we already know is very clustered.

Moran’s test worked example

moran.test(PennACS_sf$total.pop, # Variable
           listw = QueenWeights, # spatial weights matrix
           alternative="two.sided", # or greater or less
           zero.policy=TRUE)     # Ignore missing values

##
##  Moran I test under randomisation
##
## data:  PennACS_sf$total.pop
## weights: QueenWeights
##
## Moran I statistic standard deviate = 7.2265, p-value = 4.958e-13
## alternative hypothesis: two.sided
## sample estimates:
## Moran I statistic       Expectation          Variance
##       0.482999652      -0.015151515       0.004751946

H₀: Any clustering/spatial-autocorrelation seen in a map of Pennsylvania’s county level Total Population (ACS 2020) is simply down to random chance.
- The data shows Complete Spatial Randomness and is created by an Independent Random Process. We expect that our observation would have a Moran’s I similar to I = -0.015.
H₁: Pennsylvania’s county level Total Population (ACS 2020) shows a value of Moran’s I that is either unusually high OR unusually low compared to what you would expect if H0 was true. E.g. the map is so clustered or gridded that it would be very unlikely a Random Independent Process was the cause.

In this case:

The expected value of Moran’s I if H0 was true: I = -0.015
But our dataset shows a value of Moran’s I of I=0.49
The probability of this occurring by chance is p=4.958e-13 e.g. If H0 really was true, you would only see a sample with a Moran’s I value that’s more extreme than 0.49 once every 100000000000000 samples.

(Extreme? This is because I’m running a two sided test. By more extreme I mean it could be further away from the I = -0.015 in either a positive or negative direction. I=0.5 and I=-0.7 would both count as “weird”)
I am happy to reject H0. We have conclusive evidence to suggest that the clustering/spatial-autocorrelation seen in a map of Pennsylvania’s county level Total Population is NOT caused by an independent random process and (as I is positive) that it is more clustered than we would expect.

Your tasks

Using the worked example above, make and interpret a Moran’s hypothesis test for ONE of chosen variables. Check to see if it is MORE CLUSTERED than expected.

G2. Monte Carlo Hypothesis test

The theoretical moran’s test works really well in simple scenarios above. However, it works less well in complex scenarios where either the data is strongly skewed, or you have biases such as edge effects.

In spatial statistics, edge effects arise when units at the study area boundaries have fewer neighbors than those at the center, potentially distorting Moran’s I calculations. With fewer surrounding data points, these boundary units may show biased spatial relationships. This means that boundary features with few neighbors can cause Moran’s I to be artificially high or low, simply because they lack surrounding data.

To address these edge effects, we often turn to the Monte Carlo version of the Moran’s I test .

Moran’s Monte Carlo test worked example

How the Monte Carlo Moran’s I Test Works:

Calculate Observed Moran’s I: Compute the Moran’s I statistic for your actual dataset to measure the observed spatial autocorrelation.
Simulate Random Datasets:
- Randomly shuffle the data values across the spatial units to create a new dataset where any spatial structure is removed - and calculate Moran’s I each time.
- Repeat this process many times. This gives us the distribution of Moran’s I values we could expect to get under the null hypothesis that our values are randomly distributed
Compare Observed to Simulated Values: We then compare the observed Moran’s I value to this distribution. If the observed value is extreme compared to the simulated distribution, it suggests that the observed spatial pattern is unlikely to have occurred by chance.

The code is easy.

In this example, I will randomly shuffle the total population data =999 times by setting nsim = 999 - it will print out the results and show them graphically.

# Calculate the Moran's I value
# read below for what nsim is.
TotalPop_MoranMC <- moran.mc(PennACS_sf$total.pop, QueenWeights, nsim = 999)

# Print the result
TotalPop_MoranMC

##
##  Monte-Carlo simulation of Moran I
##
## data:  PennACS_sf$total.pop
## weights: QueenWeights
## number of simulations + 1: 1000
##
## statistic = 0.483, observed rank = 1000, p-value = 0.001
## alternative hypothesis: greater

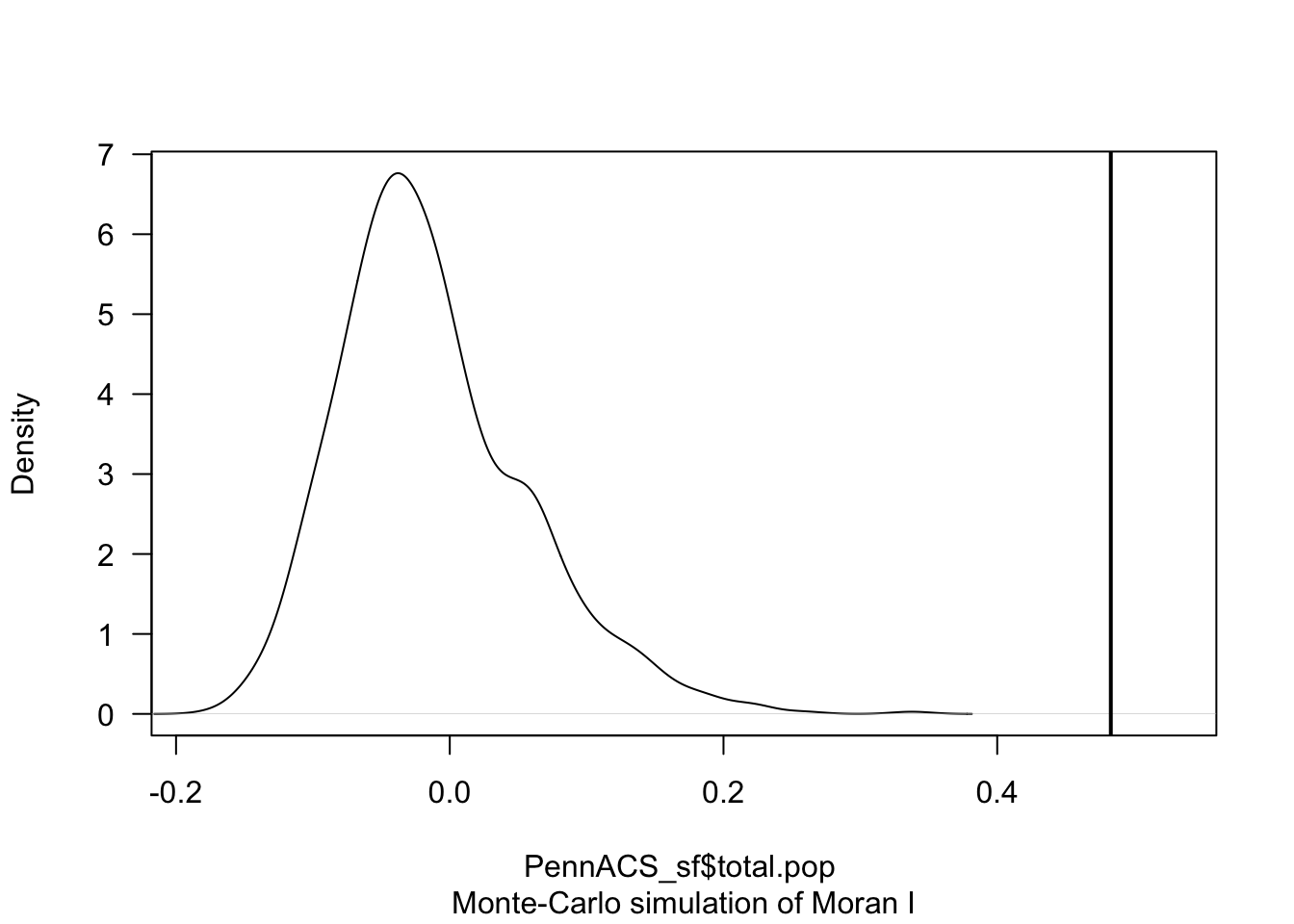

# Make a plot
plot(TotalPop_MoranMC, main = "", las = 1)

The code above suggests that our observed Moran’s I value is unusually high compared to the 999 Moran’s I values I created from scenarios where population density showed no spatial-autocorrelation.

The pseudo p-value is written in the summary, 0.01. So in this case I know that if all the assumptions in the test are correct, that there is only a 0.001 chance (~ 1 in 1000), that the clustering I see in the map is due to random chance.

What is a pseudo p-value?

Importantly, the Monte Carlo approach gives you a ‘psuedo p-value’ that depends on the number of simulations you choose (your ensemble size). E.g. a pseudo p-value means you are looking to see what percentage of ensembles has a Moran’s I that is more clustered that your actual observation.

This means that the minimum p-value you can achieve is:

minimumP = 1/(1+nsim)

where nsim is your chosen number of simulations. You can see the relationship between your ensemble size vs p-value graphically here:

Your task

Using the worked example above:
- Explain why edge effects might impact your results.
- Make and interpret a Moran’s hypothesis test for the SAME VARIABLE as you chose above, making sure that you have a lowest possible p-value of 0.002 or smaller.

H. LISA (week 2)

We will discuss the background of LISA in wednesdays lecture. To see how it is done in R, see the following tutorial:

Calculating LISA in R

To compute local indicators of spatial autocorrelation (Local Moran’s I), we can make use of the localmoran() function from the spdep package. However, this function adopts an analytical approach to computing the p-value and as described above, it’s best to adopt a Monte Carlo approach. This can be performed using the localmoran_perm() function.

In this example, we will run 999 permutations for each polygon. Here’s what the code below means.

localmoran_perm() is a command that runs Local Morans I (LISA) on our data (in my case the total population with queens weights), saving the output as LISA_Output
The object LISA_Output contains several parameters including the local Moran’s statistic for each polygon, I, and two different p-values: Pr(z != E(Ii)) Sim` and Pr(folded) Sim.
- Pr(folded) Sim. and the latter is a “folded” p-value for a one-sided test - this one works better for our uses.
To extract it, I then turn LISA_Output into an R data.frame (a special type of table). Finally we add the pseudo p-values to PennACS_sf as a new column.

LISA_Output <- localmoran_perm(PennACS_sf$total.pop, QueenWeights, nsim = 999)
PennACS_sf$LISA_pvalue <- as.data.frame(LISA_Output)$`Pr(folded) Sim`

Looking at the probabilities

We can generate a map of the pseudo p-values as follows:

pal1 <- c("#238b45","#66c2a4", "#ccece6", "grey90")

tm_shape(PennACS_sf) +
  tm_polygons(style="fixed", breaks = c(0, 0.001, 0.01, 0.05, 0.5),
              col = "LISA_pvalue",
              palette=pal1, border.col = "grey80", lwd = 0.5) +
  tm_legend(outside = TRUE, text.size = .8) +
  tm_layout(frame = FALSE)

Here you can see that there are unusual spatial patterns in the north West and towards Philadelphia. But it does NOT show you if the population is more clustered or less clustered than expected.

I have marked these on the Moran’s scatterplot - see code below. Sorry it’s long! It’s rather custom but should work if you copy/paste remembering to change total.pop to your column of choice

# Add this library to the top of your script and run
library(RColorBrewer)


# Step 1: Calculate the spatial lag
# CHANGE total.pop TO YOUR COLUMN NAME

PennACS_sf$spatial_lag <- lag.listw(QueenWeights,
                                    PennACS_sf$total.pop,  # change this
                                    zero.policy = TRUE)


#--------------------------------------------------------
# Step 2: Normalize total population and spatial lag
# CHANGE total.pop TO YOUR COLUMN NAME

plot_data <- data.frame(
  total_pop = scale(PennACS_sf$total.pop), # change this
  spatial_lag = scale(PennACS_sf$spatial_lag),
  LISA_pvalue = PennACS_sf$LISA_pvalue)

#--------------------------------------------------------
# Step 3: Create the Moran plot with ggplot2
# CHANGE total.pop TO YOUR COLUMN NAME

ggplot(plot_data, aes(x = total_pop, # change this
                      y = spatial_lag,
                      color = LISA_pvalue)) + geom_point(size = 2) +

  scale_color_gradientn(colors = c(rev(brewer.pal(5, "BuGn")), "#ccece6"),
    values = c(0, 0.01, 0.05, 0.1, 0.2, 1),name = "LISA p-value",
    limits = c(0, max(plot_data$LISA_pvalue))) +

  labs(x = "Normalized Total Population",
       y = "Normalized Spatial Lag of Total Population",
       title = "Normalized Moran Plot with LISA p-value Coloring") +
  theme_minimal() +
  geom_vline(xintercept = 0, linetype = "dotted", color = "black") +
  geom_hline(yintercept = 0, linetype = "dotted", color = "black")

Looking at the actual values.

To do this we plot the actual values - e.g. we are plotting the values from the moran’s scatterplot but ONLY coloring values that are significant/unusual compared to the average for PA. This code also accounts for false discovery rates.

Copy/paste this code. sorry there’s no easier way.

PennACS_sf$Ii <- hotspot(LISA_Output,
                         Prname="Pr(folded) Sim",
                         cutoff = 0.05, p.adjust = "fdr")

# Replace NA with ">0.05". This requires that the Ii factor be re-leveled
PennACS_sf$Ii <- factor(PennACS_sf$Ii,
                        levels=c("High-High","Low-Low",
                                 "Low-High", "High-Low", ">0.05 corrected"))

PennACS_sf$Ii[is.na(PennACS_sf$Ii)] <- ">0.05 corrected"

pal2 <- c( "#FF0000", "#0000FF", "#a7adf9", "#f4ada8","#ededed")

tm_shape(PennACS_sf) +
  tm_polygons(style="cat", border.col = "grey80", lwd = 0.5,
                           col = "Ii", palette=pal2) +
               tm_legend(outside = TRUE, text.size = .8) +
               tm_layout(frame = FALSE)

So we can see that there are significant “hotspots” around Philadelphia (counties that have higher than average populations compared surrounded by counties with higher than average populations). And cold spots around the north west (counties that have lower than average populations compared surrounded by counties with lower than average populations. However, there are not any significant spatial outliers (HIGH-LOW) or (LOW-HIGH).

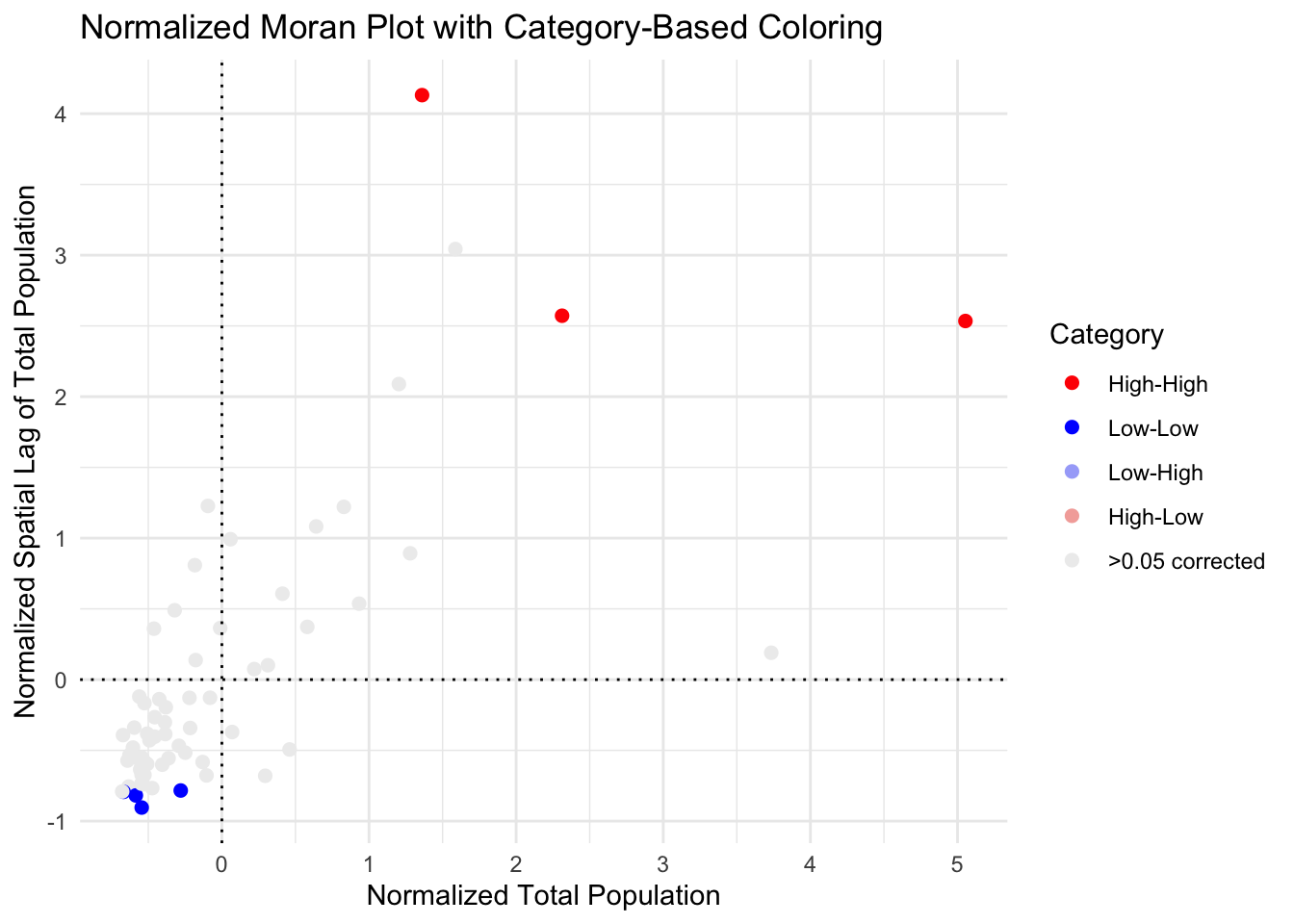

I have marked these on the Moran’s scatterplot - see code below. I am again, only coloring in values that are unusual (and have a low p-value) . YOU NEED TO CHANGE THE COLUMN NAME IN STEPS 1, 2 and 4 FOR IT TO WORK

#--------------------------------------------------------
# Step 1: Calculate the spatial lag
# CHANGE total.pop TO YOUR COLUMN NAME
PennACS_sf$spatial_lag <- lag.listw(QueenWeights,
                                    PennACS_sf$total.pop,  # change this
                                    zero.policy = TRUE)

#--------------------------------------------------------
# Step 2: Create plot data with category color
# CHANGE total.pop TO YOUR COLUMN NAME
plot_data <- data.frame(
  total_pop = scale(PennACS_sf$total.pop),  # change this
  spatial_lag = scale(PennACS_sf$spatial_lag),
  Category = factor(PennACS_sf$Ii, levels = levels(PennACS_sf$Ii)))


#--------------------------------------------------------
# Step 3. Define the color palette for each category explicitly
pal2 <- c("High-High" = "#FF0000",
          "Low-Low" = "#0000FF",
          "Low-High" = "#a7adf9",
          "High-Low" = "#f4ada8",
          ">0.05 corrected" = "#ededed")


#--------------------------------------------------------
# Step 4. Add dummy points for missing categories
missing_levels <- setdiff(levels(plot_data$Category), unique(plot_data$Category))

plot_data <- rbind(plot_data,
                   data.frame(total_pop = rep(NA, length(missing_levels)),
                              spatial_lag = rep(NA, length(missing_levels)),
                              Category = factor(missing_levels,
                                                 levels = levels(plot_data$Category)) ))


#--------------------------------------------------------
# Step 4: Create the Moran plot with ggplot2, ensuring all levels appear in the legend
ggplot(plot_data, aes(x = total_pop, # change this
                      y = spatial_lag,
                      color = Category)) +
  geom_point(size = 2, na.rm = TRUE) +  # `na.rm = TRUE` will skip NA points in plotting
  scale_color_manual(values = pal2, name = "Category", drop = FALSE) +  # Ensures all categories appear in the legend
  labs(x = "Normalized Total Population",
       y = "Normalized Spatial Lag of Total Population",
       title = "Normalized Moran Plot with Category-Based Coloring") +
  theme_minimal() +
  geom_vline(xintercept = 0, linetype = "dotted", color = "black") +
  geom_hline(yintercept = 0, linetype = "dotted", color = "black")

So here you can see that although there were counties classed as spatial outliers - they weren’t unusual enough to warrant being shown on the the map.

Your task

Using the worked example above and wednesdays class materials on LISA
- Make and interpret a LISA analysis for the SAME VARIABLE as you chose above using at least 500 simulations.
- Explain why LISA can be less robust/more sensitive than Moran’s I (we will talk about this in class, and it’s linked to sample size..)

I. Advanced (Week 2 and homework)

Well done! If you reached this stage, you have received at least a B+. But Labs 5 and 6 ask you to go a little further…

Look on Canvas. You will see that there is a new dataset for Richmond Virginia and a new report template. Download them and put them in your lab 5 folder/upload them to the cloud
I want you to make me a tutorial on spatial autocorrelation and Moran’s I for one variable of your choice in that dataset of your choice. Keep reading for details.

You are going to submit this file SEPARATELY. If you put it all in one file, you can re-download the tutorial lab template and copy/paste your work across (Easier in source view, not the fancy visual view)

What do you need to do

FIRST, REMEMBER YOU HAVE ALREADY DONE MOST OF THIS WORK!

E.g you can copy/paste ANYTHING you wrote in your lab so far and remember the readings on canvas or the lecture notes (feel free to include screenshots).
The coding should also be easy because you are copy/pasting your code from this example into your new tutorial and and just changing the table/variable name to make it run
- e.g. instead of PennACS_sf$total.pop you might have RichmondACS$med.age
- Also remember that YOU WON’T NEED EVERY CODE CHUNK. For example you don’t need any of the stuff on rearranging the data because I have already done that for you. I have marked the sections where you might find the answers in the hints below

WHAT DATA IS YOUR TUTORIAL ON?

I have provided a dataset of census data for Richmond Virginia. The data is stored as polygons at a census tract level and I extracted three specific variables,

med.age median age of people in each census tract
house.age median HOUSE age in each census tract
monthly.expenses, the median amount people spend on expenses in that tract each month

If you open the template report and run the read-in code chunks, you should see this,

Richmond_ACS <- st_read("Richmond_ACS.gpkg")

## Reading layer `Richmond_ACS' from data source
##   `/Users/hlg5155/Documents/GitHub/Teaching/GEOG364 Github/Geog364_2024/Richmond_ACS.gpkg'
##   using driver `GPKG'
## Simple feature collection with 66 features and 5 fields
## Geometry type: POLYGON
## Dimension:     XY
## Bounding box:  xmin: -77.60117 ymin: 37.44697 xmax: -77.38551 ymax: 37.60281
## Geodetic CRS:  NAD83

Richmond_ACS

## Simple feature collection with 66 features and 5 fields
## Geometry type: POLYGON
## Dimension:     XY
## Bounding box:  xmin: -77.60117 ymin: 37.44697 xmax: -77.38551 ymax: 37.60281
## Geodetic CRS:  NAD83
## First 10 features:
##          GEOID         NAME med.age house.age month.expenses
## 1  51760040300    Tract 403    19.3      1939           1333
## 2  51760040900    Tract 409    31.8      1939           1139
## 3  51760050400    Tract 504    40.9      1945           1739
## 4  51760071001 Tract 710.01    30.9      1984            977
## 5  51760010402 Tract 104.02    46.9      1954            948
## 6  51760020100    Tract 201    20.7      1962            263
## 7  51760020600    Tract 206    32.2      1939           1365
## 8  51760060900    Tract 609    34.3      1957            868
## 9  51760010800    Tract 108    43.6      1948            920
## 10 51760040600    Tract 406    28.4      1939           1081
##                              geom
## 1  POLYGON ((-77.45655 37.5432...
## 2  POLYGON ((-77.48052 37.5584...
## 3  POLYGON ((-77.51194 37.5818...
## 4  POLYGON ((-77.52741 37.5161...
## 5  POLYGON ((-77.46258 37.5840...
## 6  POLYGON ((-77.40941 37.5559...
## 7  POLYGON ((-77.4182 37.5373,...
## 8  POLYGON ((-77.45016 37.4605...
## 9  POLYGON ((-77.42484 37.5821...
## 10 POLYGON ((-77.47438 37.5656...

WHAT YOU NEED TO DO

First choose ONE of the three variables above. You only need to focus on one of them. The make a tutorial which contains the following. You are aiming for a class handout or a set of revision notes that explain the concepts at a level someone else in the class can understand.

An explanation of what autocorrelation is (negative/zero/positive) and (first-second order) - Hint Lab 5 B1
Why traditional statistical tests become challenging when working with data that exhibits spatial autocorrelation. - Hint Lab 5 B2.
- you don’t need section C, I did the wrangling for you
A brief description and map of a single variable of your choice, commenting what the data is showing and what processes might have caused any pattern you see (population density? climate?) - Hint Lab 5 Section D.
A global moran’s scatterplot and test for that variable, both standard and monte carlo - explaining what is going on in each case (Hint sections E, F and G, ignoring the renaming part in F)
A LISA analysis for that variable, explaining how the LISA map links back to your moran’s scatterplot (Hint section H)

HOW ARE YOU GRADED?

You are aiming for a class handout or a set of revision notes that explain the concepts at a level someone else in the class can understand. You are being graded on:

Style - For an A - you should have used headings/subheadings and is your report easy to navigate - I could hand it out in class. You will also have removed spurious code output (like library loading output). For 100%, your tutorial would be flawless and professional.
Descriptions- Have you explained the concepts clearly in full sentences in a way that one of your classmates would understand. You lose marks for saying things that are incorrect or misleading. You get bonus marks for saying relevant interesting things.
Code-Is your code neat/tidy and easy to follow.
Maths - Have you correctly written out and interpreted things like hypothesis tests.

SUBMITTING LAB 5

THIS IS DIFFERENT TO PREVIOUS LABS.
You are going to submit your Richmond example and your main lab script separately. If you put it all in one file, you can re-download the Week2- lab template and copy/paste your Richmond work across (Easier in source view, not the fancy visual view)

For the main lab-script

Save your work throughout and spell check your writing (button next to the save button).
Press the knit button one final time If you have not made any mistakes in the code then R should create a html file in your lab5 folder, complete with a very recent time-stamp.

For your Richmond worked example

Ideally, I want you to submit this as a separate file. If you put it all in the main lab script, you can re-download the Week2- lab template and copy/paste your Richmond work across (Easier in source view, not the fancy visual view)

Save your Richmond tutorial .Rmd and spell check your writing (button next to the save button).
Press the knit button one final time If you have not made any mistakes in the code then R should create a SECOND html file in your lab5 folder, complete with a very recent time-stamp.

If you use the POSIT cloud website

You are going to download FOUR files: - Your html and your .Rmd file for your main lab 5 (up to/including section H).
- Your html and your .Rmd file for your Richmond tutorial (Section I).

You can download each of your .RmD and html files by:

Clicking on the little box next to the Rmd in the Files tab, then going to the little blue cogwheel (might need to make your Rstudio full screen) and clicking export.Repeat the process exactly for the html file underneath it (e,g, just have the html clicked.)

Now go to Canvas and submit ALL FOUR of your html and your .Rmd file in Lab 5

If you use the RSTudio desktop on your own computer

Go to your Lab 5 folder, In that folder, double click on BOTH html files. This will open it in your browser. CHECK THAT THESE ARE WHAT YOU WANT TO SUBMIT
Now go to Canvas and submit FOUR FILES:
Your html and your .Rmd file for your main lab 5 (up to/including section H).
Your html and your .Rmd file for your Richmond tutorial (Section I).

GRADING CHECK-LIST

[160 marks total] [130 marks for your main lab] [30 marks for your tutorial]

What does your grade mean?

Overall, here is what your lab should correspond to:

Grade	% Mark	Rubric
A*	98-100	Exceptional. Not only was it near perfect, but the graders learned something. THIS IS HARD TO GET.
NA	96+	You went above and beyond
A	93+:	Everything asked for with high quality. Class example
A-	90+	The odd minor mistake, All code done but not written up in full sentences etc. A little less care
B+	87+	More minor mistakes. Things like missing units, getting the odd question wrong, no workings shown
B	83+	Solid work but the odd larger mistake or missing answer. Completely misinterpreted something, that type of thing
B-	80+	Starting to miss entire/questions sections, or multiple larger mistakes. Still a solid attempt.
C+	77+	You made a good effort and did some things well, but there were a lot of problems. (e.g. you wrote up the text well, but messed up the code)
C	70+	It’s clear you tried and learned something. Just attending labs will get you this much as we can help you get to this stage
D	60+	You attempt the lab and submit something. Not clear you put in much effort or you had real issues
F	0+	Didn’t submit, or incredibly limited attempt.

Lab 5: Moran’s I & LISA

GEOG-364 - Spatial Analysis

Welcome to Lab 5 Week 1 !

Aims

A. Set-up

A1. Create a Lab 5 project

A2. Add your data & lab template

A3. Change the YAML Code

A4. Add the library code chunk

STOP AND CHECK

B: Moran’s theory showcase

Question B1.

Question B2.

Question B3.

Question B4.

REAL EXAMPLE (REST OF LAB)

C. Wrangling Census data

C1. Get the data

How Dr G got the census data

C2. Estimates vs margins of error

C3. Tidy the data

C4. Calculate county areas

C5. Calculate rates and densities

C6. Check for empty polygons

D. Describe the data

D1. Describe the data in words

D2. Make some maps

D3. Explain the maps.

D4. Comment on autocorrelation

E. Spatial weights

E1. Defining neighbours

E1. Understanding neighbours

E2. Mapping neighbours

E3. Spatial weights matrix

F. Moran’s Scatterplot

F1. Making better plot labels

F2. Moran scatterplot

G. Moran’s Hypothesis test (week 2)

G1. Basic test interpretation

G2. Monte Carlo Hypothesis test

H. LISA (week 2)

I. Advanced (Week 2 and homework)

What do you need to do

FIRST, REMEMBER YOU HAVE ALREADY DONE MOST OF THIS WORK!

WHAT DATA IS YOUR TUTORIAL ON?

WHAT YOU NEED TO DO

HOW ARE YOU GRADED?

SUBMITTING LAB 5

For the main lab-script

For your Richmond worked example

If you use the POSIT cloud website

If you use the RSTudio desktop on your own computer

GRADING CHECK-LIST

What does your grade mean?
